MICRO FUSION

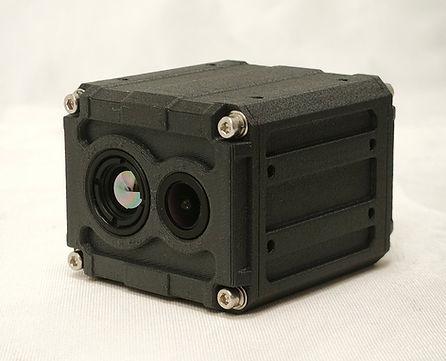

MICRO FUSION — miniature dual sensor vision, engineered to disappear. Thermal + daylight fused into one compact fixed unit, mountable in vertical or horizontal configurations

Download DATASHEET

Night Sensor: Uncooled VOx FPA 12 μm 640x512 50fps SPECTRAL Range 8-14 μm; Length Options - 6.8/9.1/13/19/25 mm; Digital Zoom x8

BACK TO OVERVIEW

Day Sensor: 5MP 1/2.5-inch PixelPlus 2.2 μm pixel; 1920x1080 60 FPS; 85db; Lens 3.6mm / 6mm

Night Sensor: Uncooled VOx FPA 12 μm 640x512 50fps SPECTRAL Range 8-14 μm; Length Options - 6.8/9.1/13/19/25 mm; Digital Zoom x8

Pan&Tilt: NA

LRF (Laser Range Finder): NA

SYSTEM COMPONENTS

Power: 9-36 VDC, 3W Nominal Consumption (250mA@12VDC)

IP Rate:

Interface: H.265/H.264 Ethernet/RTSP/ONVIF
1ststream: 1920×1080 / 1280×720 pixels
2ndstream: D1, VGA, 640×360 pixels

Color: RAL7000
