FUSION-F640

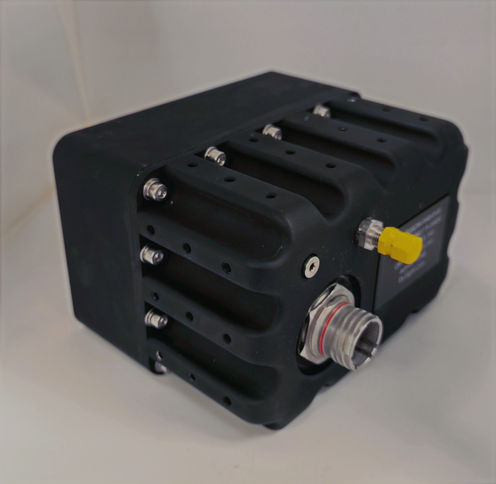

Fusion640 camera DUAL of Day and Thermal channels in a single rugged camera with multiple lens configurations for fixed and mobile platform integration.

Download DATASHEET

Night Sensor: UNCOOLED LWIR 12 μm 640x512; LENS 5.8mm; 30 FPS (FOV 67°)

SYSTEM OUTLINE

SENSORS

4K 8.0MP IMX678; M12 LENS; 30 FPS H.265/H.264/MJPEG

Night Sensor: UNCOOLED LWIR 12 μm 640x512; LENS 5.8mm; 30 FPS (FOV 67°)

LRF (Laser Range Finder): NA

MOTION REQUESTS

Pan&Tilt: OPTIONAL ADVA/ALMA/COMPASS

SYSTEM COMPONENTS

Power: 9-36VDC, NOMINAL 5.6W (MAX on LOAD 12W)

IP Rate: IP67 Nitrogen Purged 47

Interface: D38999/23YC35PN CONNECTOR; ANALOG OUT FORMAT:2 OUTPUTS X PAL (DAY + LWIR) , ETHERNET SINGLE CONNECTION, INTERNAL EMBEDDED SWITCH, SDK WEB INTERFACE

Color: MATTE BLACK SUR TEC 650 MIL-DTL-81706-B TYPE I CLASS 3.
