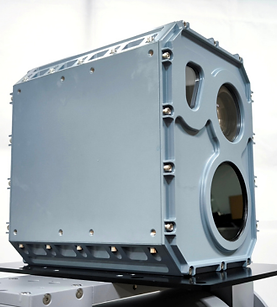

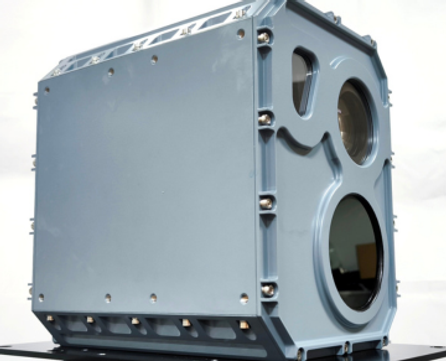

DEEPSIGHT LWIR HD 25-225 PRO
Ex-Sight's premier long-range imaging platform combines advanced thermal and EO sensors in a ruggedized payload.
DEEPSIGHT turns your camera system into a real-time situational-awareness platform for surveillance, perimeter and border security, critical-infrastructure protection and counter-drone missions.
SYSTEM OUTLINE
SENSORS
Low Light Day Sensor: 1/1.8" 5MP Pregius S Global Exposure CMOS,
2448 ×2048, 5MP, 20~1200mm; 60×Optical, 16×Digital
FOV 19.0° to 0.32°
Night Sensor: LWIR 1280x1024; x9 Zoom; 25-225 mm (FOV 34.2° to 3.9°)
LRF (Laser Range Finder): 8KM NATO Target, Precision 0.01 – 0.5 m, Beam divergence 0.6 mrad, Eye safe Laser Class 1
MOTION REQUESTS
PAN: Cont. 360° Deg; Motor Torque (NM) 35/ 50/ 150
TILT: Max ±90° Deg; Max. Motor Torque (NM) 35/ 50/ 150
SYSTEM COMPONENTS
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
Interface: ETHERNET INTERFACE
Color: RAL7000
