Integrated Electro-Optic Development Platform

Low Light Day Sensor: 3.0MP Global Shutter Zoom Block Optical x30 Digital x16; Resolution 2048x1536 @ 30fps; Focal Length 5.5mm-165mm FOV 46.5° - 2.2°
OR
3.7MP SONY IMX675 Zoom Block Optical x40 Digital x32; Resolution 2560x1440 @ 30fps; Focal Length 4.25mm-170mm FOV 73.8° -2.16°

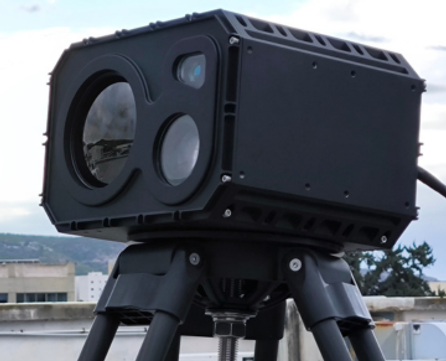

Night Sensors: LWIR 640x512; x5 Zoom; 20-100mm (FOV 22.5° to 4.4°)

LRF (Laser Range Finder): 8KM NATO Target, Precision 0.01 – 0.5 m, Beam divergence 0.6 mrad, Eye safe Laser Class 1

Interface: ETHERNET INTERFACE

Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER

IP Rate: Sealed IP67 Nitrogen Purged

Color: RAL7000

Download DATASHEET

DEEPSIGHT LWIR 20-100
