Ex-Sight Electro Optics
Power: 9-36 VDC <2W MAX
IP Rate: IP66
xEye
Rugged LWIR / Low Light Electro-Optic Sensor
Low Light Sensors: FULL HD 1920x1080 x36 Zoom 4 mm (H-FOV 90°; V-FOV 46°)
Night Sensors: NA
Pan&Tilt: NA
LRF (Laser Range Finder): NA
Power: 9-36 VDC <2W MAX
IP Rate: IP66
Interface: ETHERNET INTERFACE
Power: 9-36 VDC <2W MAX
IP Rate: IP67

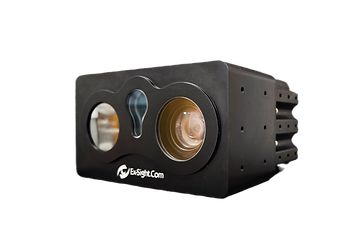

xEye-Z LWIR
Rugged LWIR / Low Light Electro-Optic Sensor
Low Light Sensors: NA
Night Sensors: UNCOOLED LWIR 12 μm 1280x1024; LENS 13mm (FOV 69.4° x57.3°)
Pan&Tilt: NA
LRF (Laser Range Finder): NA
Power: 9-36 VDC <2W MAX
IP Rate: IP67
Interface: ETHERNET INTERFACE
Color: Black RAL9005
Power: 9-36 VDC <2W MAX
IP Rate: IP67
xEye-Z Day
Rugged LWIR / Low Light Electro-Optic Sensor
Low Light Sensors: LOW LIGHT 2560x1440; x40 Zoom; 4,25mm-170mm (FOV 73,8° to 2,16°)
or
LOW LIGHT 2048x1536; x30 Zoom; 5,5mm-162mm (FOV 46,5° to 2,2°)
Night Sensors: NA
Pan&Tilt: NA
LRF (Laser Range Finder): NA
Power: 9-36 VDC <2W MAX
IP Rate: IP67
Interface: ETHERNET INTERFACE
Color: Black RAL9005
Power: 9-36 VDC <2W MAX
IP Rate: IP67
xEye-N LWIR
Rugged LWIR / Low Light Electro-Optic Sensor
Low Light Sensors: NA
Night Sensors: UNCOOLED LWIR 12 μm 640x512
LENS 5.8mm FOV 69.4° x57.3°
LENS 4mm FOV 88.4° x74.3°
Pan&Tilt: NA
LRF (Laser Range Finder): NA
Power: 9-36 VDC <2W MAX
IP Rate: IP67
Interface: ETHERNET INTERFACE
Color: Black RAL9005
Power: 9-36 VDC <2W MAX
IP Rate: IP67
xEye-N Day
Rugged LWIR / Low Light Electro-Optic Sensor
Low Light Sensors: Up to 3840x2160 / 8MP 4K; LENS 5mm FOV 70.7°x43.5°
LENS 4mm FOV 84.6°x45.9°
Night Sensors: NA
Pan&Tilt: NA
LRF (Laser Range Finder): NA
Power: 9-36 VDC <2W MAX
IP Rate: IP67
Interface: ETHERNET INTERFACE
Color: Black RAL9005
Power: 9-36VDC, NOMINAL 5.6W (MAX on LOAD 12W)
IP Rate: IP67 Nitrogen Purged 47
FUSION-F640
Rugged Day & Night Driver Vision Enhancer and Electro-Optic Tracker
Day Sensors: 4K 8.0MP IMX678; M12 LENS; 30 FPS H.265/H.264/MJPEG
Night Sensors: UNCOOLED LWIR 12 μm 640x512; LENS 5.8mm; 30 FPS (FOV 67°)
Pan&Tilt: NA
LRF (Laser Range Finder): NA
Power: 9-36VDC, NOMINAL 5.6W (MAX on LOAD 12W)
IP Rate: IP67 Nitrogen Purged 47
Interface: D38999/23YC35PN CONNECTOR; ANALOG OUT FORMAT:2 OUTPUTS X PAL (DAY + LWIR) , ETHERNET SINGLE CONNECTION, INTERNAL EMBEDDED SWITCH, SDK WEB INTERFACE
Color: MATTE BLACK SUR TEC 650 MIL-DTL-81706-B TYPE I CLASS 3.
Power: 9-36VDC, NOMINAL 5.6W (MAX on LOAD 12W)
IP Rate: IP67 Nitrogen Purged
OZ-25-75
Rugged Day & Night Driver Vision Enhancer and Electro-Optic Tracker
Day Sensors: GLOBAL SHUTTER X30; 2048x1536 30 FPS; H.265/H264
Night Sensors: UNCOOLED LWIR 12 μm 1280x1024 or 640x512; LENS 25-75 mm
1280x1024 FOV H*V (11,5°x9,3°~ 35,9°x28,5°)
640x512 FOV H*V (5,9°x4,7°~ 17,7°x14,1°)
Pan&Tilt: NA
LRF (Laser Range Finder): 8 KM NATO TARGET
Power: 9-36VDC, NOMINAL 5.6W (MAX on LOAD 12W)
IP Rate: IP67 Nitrogen Purged
Interface: D38999/23YE35PN, ETHERNET/RTSP/ONVIF; VIDEO & CONTROL
Color: MATTE BLACK SUR TEC 650 MIL-DTL-81706-B TYPE I CLASS 3.
Power: 24-48VDC
IP Rate: IP66
COMPASS
Heavy Duty Stabilized Pan Tilt Positioners
MAX.SPEED: 30 RPM, up to 180°/sec
Mounting Type: Top Mount
PAN: 35 NM
MAX.PAYLOAD: 9 Kg
Power: 24-48VDC
IP Rate: IP66
TRUE NORTH INS GPS: INS DUAL ANTENNA GNSS-AIDED INERTIAL NAVIGATION*
Color: Black RAL9005
Power: 24-48VDC
IP Rate: IP66
ADVA
Heavy Duty Stabilized Pan Tilt Positioners
MAX.SPEED: 30 RPM, up to 180°/sec
Mounting Type: Top Mount
TILT: 35 NM
MAX.PAYLOAD: 9 Kg
Power: 24-48VDC
IP Rate: IP66
Optional VN100 INS/ VN200 INS
Color: Black RAL9005
Power: 24-48VDC
IP Rate: IP66
ALMA
Heavy Duty Stabilized Pan Tilt Positioners
MAX.SPEED: 30 RPM, up to 180°/sec
Mounting Type: Top Mount
PAN: 35 NM
TILT: 35 NM
MAX.PAYLOAD: 15Kg
Power: 24-48VDC
IP Rate: IP66
TRUE NORTH INS GPS: INS DUAL ANTENNA GNSS-AIDED INERTIAL NAVIGATION*
Color: Black RAL9005
Power: 24-48VDC
IP Rate: IP66
OMEGA
Heavy Duty Stabilized Pan Tilt Positioners
MAX.SPEED: 20 RPM, up to 120°/sec
Mounting Type: Ω (OMEGA); TOP + Sides
PAN: Cont. 360° Deg; Motor Torque (150 NM)
TILT: Max ±90° Deg; Max. Motor Torque (150 NM)
MAX. PAYLOAD: 70Kg
Power: 24-48VDC
IP Rate: IP66
TRUE NORTH INS GPS: INS DUAL ANTENNA GNSS-AIDED INERTIAL NAVIGATION*
Color: RAL7000
Power: 24-48VDC
IP Rate: IP66
OWL225
Heavy Duty Stabilized Pan Tilt Positioners
MAX.SPEED: 20 RPM, up to 120°/sec
Mounting Type: U Mount
PAN: Cont. 360° Deg; Motor Torque (150 NM)
TILT: Max ±90° Deg; Max. Motor Torque (150 NM)
MAX. PAYLOAD: 50Kg
Power: 24-48VDC
IP Rate: IP66
TRUE NORTH INS GPS: INS DUAL ANTENNA GNSS-AIDED INERTIAL NAVIGATION*
Color: RAL7000
Power: 24-48VDC
IP Rate: IP66
OWL
Heavy Duty Stabilized Pan Tilt Positioners
MAX.SPEED: 20 RPM, up to 120°/sec
Mounting Type: U Mount
PAN: Cont. 360° Deg; Motor Torque (150 NM)
TILT: Max ±90° Deg; Max. Motor Torque (150 NM)
MAX. PAYLOAD: 50Kg
Power: 24-48VDC
IP Rate: IP66
TRUE NORTH INS GPS: INS DUAL ANTENNA GNSS-AIDED INERTIAL NAVIGATION*
Color: RAL7000
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged

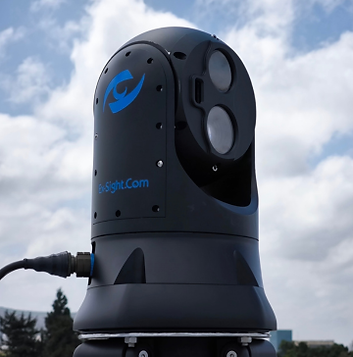

SPHERE-F
Dual Sensor Rugged GIMBAL
Day Sensors: 3.0MP Global Shutter Zoom Block Optical x30 Digital x16 Resolution 2048x1536 @30fps; Focal Length 5.5mm-165mm FOV 46.5° - 2.2°
Night Sensors: LWIR 640x512; Up to 35mm
PAN: Up to 150°/Sec
LRF (Laser Range Finder): NA
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
Interface: ETHERNET INTERFACE
Color: RAL 9005 JET BLACK
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged

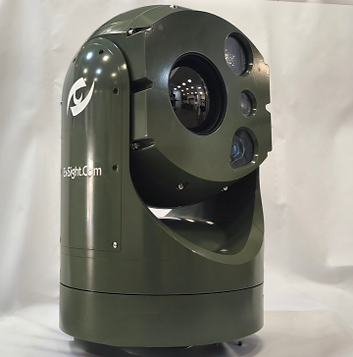

SWIR HD 7.1-200
Integrated Electro-Optic Development GIMBAL
Day Sensors: 3.0MP Global Shutter Zoom Block Optical x30 Digital x16; Resolution 2048x1536 @30fps
Focal Length 5.5mm-165mm FOV 46.5° - 2.2°
OR
3.7MP SONY IMX675 Zoom Block Optical x40 Digital x32; Resolution 2560x1440 @30fps; Focal Length 4.25mm-170mm FOV 73.8° - 2.16°
Night Sensors: SWIR 1280x1024; x28 Zoom; 7.1-200mm (FOV 48.5° to 1.83°)
PAN: Up to 150°/Sec
LRF (Laser Range Finder): 8KM NATO Target, Precision 0.01 – 0.5 m, Beam divergence 0.6 mrad, Eye safe Laser Class 1
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
Interface: ETHERNET INTERFACE
Color: RAL 6014 YELLOW OLIVE
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
LWIR HD 25-75
Integrated Electro-Optic Development GIMBAL
Day Sensors: 3.0MP Global Shutter Zoom Block Optical x30 Digital x16; Resolution 2048x1536 @30fps
Focal Length 5.5mm-165mm FOV 46.5° - 2.2°
OR
3.7MP SONY IMX675 Zoom Block Optical x40 Digital x32; Resolution 2560x1440 @30fps; Focal Length 4.25mm-170mm FOV 73.8° - 2.16°
Night Sensors: LWIR 1280x1024; x3 Zoom; 25-75mm (FOV 32°to 10.9°)
PAN: Up to 150°/Sec
LRF (Laser Range Finder): 8KM NATO Target, Precision 0.01 – 0.5 m, Beam divergence 0.6 mrad, Eye safe Laser Class 1
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
Interface: ETHERNET INTERFACE
Color: RAL 6014 YELLOW OLIVE
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
LWIR 20-100
Integrated Electro-Optic Development GIMBAL
Day Sensors: 3.0MP Global Shutter Zoom Block Optical x30 Digital x16; Resolution 2048x1536 @30fps
Focal Length 5.5mm-165mm FOV 46.5° - 2.2°
OR
3.7MP SONY IMX675 Zoom Block Optical x40 Digital x32; Resolution 2560x1440 @30fps; Focal Length 4.25mm-170mm FOV 73.8° - 2.16°
Night Sensors: LWIR 640x512; x5 Zoom; 20-100mm (FOV 22,5° to 4,4°)
PAN: Up to 150°/Sec
LRF (Laser Range Finder): 8KM NATO Target, Precision 0.01 – 0.5 m, Beam divergence 0.6 mrad, Eye safe Laser Class 1
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
Interface: ETHERNET INTERFACE
Color: RAL 6014 YELLOW OLIVE
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
LWIR 25-150
Integrated Electro-Optic Development GIMBAL
Day Sensors: 3.0MP Global Shutter Zoom Block Optical x30 Digital x16; Resolution 2048x1536 @30fps
Focal Length 5.5mm-165mm FOV 46.5° - 2.2°
OR
3.7MP SONY IMX675 Zoom Block Optical x40 Digital x32; Resolution 2560x1440 @30fps; Focal Length 4.25mm-170mm FOV 73.8° - 2.16°
Night Sensors: LWIR 640x512; x6 Zoom; 25-150mm (FOV 17,5° to 2,93°)
PAN: Up to 150°/Sec
LRF (Laser Range Finder): 8KM NATO Target, Precision 0.01 – 0.5 m, Beam divergence 0.6 mrad, Eye safe Laser Class 1
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
Interface: ETHERNET INTERFACE
Color: RAL 6014 YELLOW OLIVE
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged

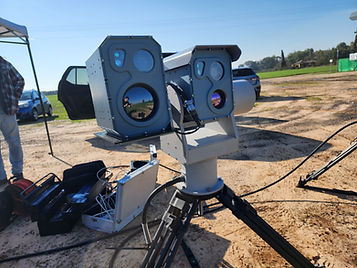

MWIR 15-300
Integrated Electro-Optic Development GIMBAL
Day Sensors: 3.0MP Global Shutter Zoom Block Optical x30 Digital x16; Resolution 2048x1536 @30fps
Focal Length 5.5mm-165mm FOV 46.5° - 2.2°
OR
3.7MP SONY IMX675 Zoom Block Optical x40 Digital x32; Resolution 2560x1440 @30fps; Focal Length 4.25mm-170mm FOV 73.8° - 2.16°
Night Sensors: COOLED MWIR x20 Zoom; 15-300 mm F4.0 (FOV 1.83° to 35.5°)
PAN: Up to 150°/Sec
LRF (Laser Range Finder): 8KM NATO Target, Precision 0.01 – 0.5 m, Beam divergence 0.6 mrad, Eye safe Laser Class 1
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
Interface: ETHERNET INTERFACE
Color: RAL 6014 YELLOW OLIVE
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged

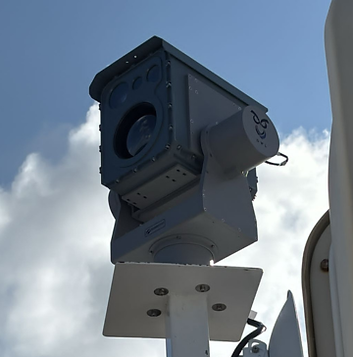

DEEPSIGHT SWIR HD 17-510 PRO
Integrated Electro-Optic Development Platform
Low Light Day Sensor: 1/1.8" 5MP Pregius S Global Exposure CMOS,
2448 ×2048, 5MP20 ~ 1200mm；60×Optical, 16×Digital
FOV 19.0° to 0.32°
Night Sensors: SWIR 1280x1024; x30 Zoom; 17-510 mm (FOV 21.32° to 0.72°)
PAN: Cont. 360° Deg; Motor Torque (NM) 35/ 50/ 150
TILT: Max ±90° Deg; Max. Motor Torque (NM) 35/ 50/ 150
LRF (Laser Range Finder): 8KM NATO Target, Precision 0.01 – 0.5 m, Beam divergence 0.6 mrad, Eye safe Laser Class 1
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
Interface: ETHERNET INTERFACE
Color: RAL7000
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
DEEPSIGHT LWIR HD 25-225 PRO
Integrated Electro-Optic Development Platform
Low Light Day Sensor: 1/1.8" 5MP Pregius S Global Exposure CMOS,
2448 ×2048, 5MP20 ~ 1200mm；60×Optical, 16×Digital
FOV 19.0° to 0.32°
Night Sensors: LWIR 1280x1024; x9 Zoom; 25-225 mm (FOV 34.2° to 3.9°)
PAN: Cont. 360° Deg; Motor Torque (NM) 35/ 50/ 150
TILT: Max ±90° Deg; Max. Motor Torque (NM) 35/ 50/ 150
LRF (Laser Range Finder): 8KM NATO Target, Precision 0.01 – 0.5 m, Beam divergence 0.6 mrad, Eye safe Laser Class 1
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
Interface: ETHERNET INTERFACE
Color: RAL7000
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
DEEPSIGHT LWIR HD 30-300
Integrated Electro-Optic Development Platform
Low Light Day Sensor: 1/1.8" 5MP Pregius S Global Exposure CMOS,
2448 ×2048, 5MP20 ~ 1200mm；60×Optical, 16×Digital
FOV 19.0° to 0.32°
Night Sensors: LWIR 1280x1024; x10 Zoom; 30-300 mm (FOV 32° to 10.9°)
PAN: Cont. 360° Deg; Motor Torque (NM) 35/ 50/ 150
TILT: Max ±90° Deg; Max. Motor Torque (NM) 35/ 50/ 150
LRF (Laser Range Finder): 8KM NATO Target, Precision 0.01 – 0.5 m, Beam divergence 0.6 mrad, Eye safe Laser Class 1
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
Interface: ETHERNET INTERFACE
Color: RAL7000
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
DEEPSIGHT MWIR HD 50-1000
Integrated Electro-Optic Development Platform
Low Light Day Sensor: 1/1.8" 5MP Pregius S Global Exposure CMOS,
2448 ×2048, 5MP20 ~ 1200mm；60×Optical, 16×Digital
FOV 19.0° to 0.32°
Night Sensors: COOLED HD MWIR x20 Zoom; 50-1000 mm; F4.0 (FOV 14.6° to 0.7°)
PAN: Cont. 360° Deg; Motor Torque (NM) 35/ 50/ 150
TILT: Max ±90° Deg; Max. Motor Torque (NM) 35/ 50/ 150
LRF (Laser Range Finder): 8KM NATO Target, Precision 0.01 – 0.5 m, Beam divergence 0.6 mrad, Eye safe Laser Class 1
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
Interface: ETHERNET INTERFACE
Color: RAL7000
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
DEEPSIGHT HD LWIR 25-225
Integrated Electro-Optic Development Platform
Low Light Day Sensor: 3.0MP Global Shutter Zoom Block Optical x30 Digital x16; Resolution 2048x1536 @ 30fps; Focal Length 5.5mm-165mm FOV 46.5° - 2.2°
OR
3.7MP SONY IMX675 Zoom Block Optical x40 Digital x32; Resolution 2560x1440 @ 30fps; Focal Length 4.25mm-170mm FOV 73.8° -2.16°
Night Sensors: LWIR 1280x1024; x9 Zoom; 25-225 mm (FOV 34.2° to 3.9°)
PAN: Cont. 360° Deg; Motor Torque (NM) 35/ 50/ 150
TILT: Max ±90° Deg; Max. Motor Torque (NM) 35/ 50/ 150
LRF (Laser Range Finder): 8KM NATO Target, Precision 0.01 – 0.5 m, Beam divergence 0.6 mrad, Eye safe Laser Class 1
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
Interface: ETHERNET INTERFACE
Color: RAL7000
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
DEEPSIGHT SWIR HD 17-510
Integrated Electro-Optic Development Platform
Low Light Day Sensor: 3.0MP Global Shutter Zoom Block Optical x30 Digital x16; Resolution 2048x1536 @ 30fps; Focal Length 5.5mm-165mm FOV 46.5° - 2.2°
OR
3.7MP SONY IMX675 Zoom Block Optical x40 Digital x32; Resolution 2560x1440 @ 30fps; Focal Length 4.25mm-170mm FOV 73.8° -2.16°
Night Sensors: SWIR 1280x1024; x30 Zoom; 17-510 mm (FOV 21.32° to 0.72°)
PAN: Cont. 360° Deg; Motor Torque (NM) 35/ 50/ 150
TILT: Max ±90° Deg; Max. Motor Torque (NM) 35/ 50/ 150
LRF (Laser Range Finder): 8KM NATO Target, Precision 0.01 – 0.5 m, Beam divergence 0.6 mrad, Eye safe Laser Class 1
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
Interface: ETHERNET INTERFACE
Color: RAL7000
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
DEEPSIGHT SWIR HD 7.1-200
Integrated Electro-Optic Development Platform
Low Light Day Sensor: 3.0MP Global Shutter Zoom Block Optical x30 Digital x16; Resolution 2048x1536 @ 30fps; Focal Length 5.5mm-165mm FOV 46.5° - 2.2°
OR
3.7MP SONY IMX675 Zoom Block Optical x40 Digital x32; Resolution 2560x1440 @ 30fps; Focal Length 4.25mm-170mm FOV 73.8° -2.16°
Night Sensors: SWIR 1280x1024; x28 Zoom; 7.1-200 mm (FOV 48.5° to 1.83°)
PAN: Cont. 360° Deg; Motor Torque (NM) 35/ 50/ 150
TILT: Max ±90° Deg; Max. Motor Torque (NM) 35/ 50/ 150
LRF (Laser Range Finder): 8KM NATO Target, Precision 0.01 – 0.5 m, Beam divergence 0.6 mrad, Eye safe Laser Class 1
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
Interface: ETHERNET INTERFACE
Color: RAL7000
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
DEEPSIGHT MWIR HD 15-300
Integrated Electro-Optic Development Platform
Low Light Day Sensor: 3.0MP Global Shutter Zoom Block Optical x30 Digital x16; Resolution 2048x1536 @ 30fps; Focal Length 5.5mm-165mm FOV 46.5° - 2.2°
OR
3.7MP SONY IMX675 Zoom Block Optical x40 Digital x32; Resolution 2560x1440 @ 30fps; Focal Length 4.25mm-170mm FOV 73.8° -2.16°
Night Sensors: COOLED HD MWIR x20 Zoom; 15-300 mm F4.0 (FOV 35.5° to 1.83°)
PAN: Cont. 360° Deg; Motor Torque (NM) 35/ 50/ 150
TILT: Max ±90° Deg; Max. Motor Torque (NM) 35/ 50/ 150
LRF (Laser Range Finder): 8KM NATO Target, Precision 0.01 – 0.5 m, Beam divergence 0.6 mrad, Eye safe Laser Class 1
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
Interface: ETHERNET INTERFACE
Color: RAL7000
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
DEEPSIGHT LWIR HD 25-75
Integrated Electro-Optic Development Platform
Low Light Day Sensor: 3.0MP Global Shutter Zoom Block Optical x30 Digital x16; Resolution 2048x1536 @ 30fps; Focal Length 5.5mm-165mm FOV 46.5° - 2.2°
OR
3.7MP SONY IMX675 Zoom Block Optical x40 Digital x32; Resolution 2560x1440 @ 30fps; Focal Length 4.25mm-170mm FOV 73.8° -2.16°
Night Sensors: LWIR 1280x1024; x3 Zoom; 25-75mm (FOV 32° to 10.9°)
PAN: Cont. 360° Deg; Motor Torque (NM) 35/ 50/ 150
TILT: Max ±90° Deg; Max. Motor Torque (NM) 35/ 50/ 150
LRF (Laser Range Finder): 8KM NATO Target, Precision 0.01 – 0.5 m, Beam divergence 0.6 mrad, Eye safe Laser Class 1
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
Interface: ETHERNET INTERFACE
Color: RAL7000
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
DEEPSIGHT LWIR 20-100
Integrated Electro-Optic Development Platform
Low Light Day Sensor: 3.0MP Global Shutter Zoom Block Optical x30 Digital x16; Resolution 2048x1536 @ 30fps; Focal Length 5.5mm-165mm FOV 46.5° - 2.2°
OR
3.7MP SONY IMX675 Zoom Block Optical x40 Digital x32; Resolution 2560x1440 @ 30fps; Focal Length 4.25mm-170mm FOV 73.8° -2.16°
Night Sensors: LWIR 640x512; x5 Zoom; 20-100mm (FOV 22.5° to 4.4°)
PAN: Cont. 360° Deg; Motor Torque (NM) 35/ 50/ 150
TILT: Max ±90° Deg; Max. Motor Torque (NM) 35/ 50/ 150
LRF (Laser Range Finder): 8KM NATO Target, Precision 0.01 – 0.5 m, Beam divergence 0.6 mrad, Eye safe Laser Class 1
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
Interface: ETHERNET INTERFACE
Color: RAL7000
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
DEEPSIGHT LWIR 25-150
Integrated Electro-Optic Development Platform
Low Light Day Sensor: 3.0MP Global Shutter Zoom Block Optical x30 Digital x16; Resolution 2048x1536 @ 30fps; Focal Length 5.5mm-165mm FOV 46.5° - 2.2°
OR
3.7MP SONY IMX675 Zoom Block Optical x40 Digital x32; Resolution 2560x1440 @ 30fps; Focal Length 4.25mm-170mm FOV 73.8° -2.16°
Night Sensors: LWIR 640x512; x6 Zoom; 25-150mm (FOV 17.5° to 2.93°)
PAN: Cont. 360° Deg; Motor Torque (NM) 35/ 50/ 150
TILT: Max ±90° Deg; Max. Motor Torque (NM) 35/ 50/ 150
LRF (Laser Range Finder): 8KM NATO Target, Precision 0.01 – 0.5 m, Beam divergence 0.6 mrad, Eye safe Laser Class 1
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
Interface: ETHERNET INTERFACE
Color: RAL7000
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
DEEPSIGHT MWIR 15-300
Integrated Electro-Optic Development Platform
Low Light Day Sensor: 3.0MP Global Shutter Zoom Block Optical x30 Digital x16; Resolution 2048x1536 @ 30fps; Focal Length 5.5mm-165mm FOV 46.5° - 2.2°
OR
3.7MP SONY IMX675 Zoom Block Optical x40 Digital x32; Resolution 2560x1440 @ 30fps; Focal Length 4.25mm-170mm FOV 73.8°- 2.16°
Night Sensors: COOLED MWIR x20 Zoom; 15-300 mm F4.0 (FOV 1.83° to 35.5°)
PAN: Cont. 360° Deg; Motor Torque (NM) 35/ 50/ 150
TILT: Max ±90° Deg; Max. Motor Torque (NM) 35/ 50/ 150
LRF (Laser Range Finder): 8KM NATO Target, Precision 0.01 – 0.5 m, Beam divergence 0.6 mrad, Eye safe Laser Class 1
Power: 12-40 VDC 120W Max. MIL.STD704, MIL.STD810G POWER STABILIZER
IP Rate: Sealed IP67 Nitrogen Purged
Interface: ETHERNET INTERFACE
Color: RAL7000
Power: 9-36VDC, NOMINAL 5.6W (MAX on LOAD 12W)
IP Rate: IP67 Nitrogen Purged 47
FUSION-F1280
Rugged Day & Night Driver Vision Enhancer and Electro-Optic Tracker
Day Sensors: 4K 8.0MP IMX678; M12 LENS; 30 FPS; H.265/H.264/MJPEG
Night Sensors: UNCOOLED LWIR 12 μm 1280x1024; LENS 13mm; 30 FPS (FOV 61°)
Pan&Tilt: NA
LRF (Laser Range Finder): NA
Power: 9-36VDC, NOMINAL 5.6W (MAX on LOAD 12W)
IP Rate: IP67 Nitrogen Purged 47
Interface: D38999/23YC35PN CONNECTOR; ANALOG OUT FORMAT:2 OUTPUTS X PAL (DAY + LWIR) , ETHERNET SINGLE CONNECTION, INTERNAL EMBEDDED SWITCH, SDK WEB INTERFACE
Color: MATTE BLACK SUR TEC 650 MIL-DTL-81706-B TYPE I CLASS 3.
Power: 9-36VDC, NOMINAL 5.6W (MAX on LOAD 12W)
IP Rate: IP67 Nitrogen Purged
OZ-1280-F
Rugged Day & Night Driver Vision Enhancer and Electro-Optic Tracker
3.7MP SONY IMX675 Zoom Block Optical x40 Digital x32; Resolution 2560x1440 @ 30fps; Focal Length 4.25mm-170mm FOV 73.8°- 2.16°
Night Sensors: UNCOOLED LWIR 12 μm 1280x1024 Lens 13mm 30 FPS (FOV 61°)
Pan&Tilt: NA
LRF (Laser Range Finder): NA
Power: 9-36VDC, NOMINAL 5.6W (MAX on LOAD 12W)
IP Rate: IP67 Nitrogen Purged
Interface: D38999/23YE35PN, ETHERNET/RTSP/ONVIF; VIDEO & CONTROL
Color: MATTE BLACK SUR TEC 650 MIL-DTL-81706-B TYPE I CLASS 3.
Power: Regulated 12VDC
IP Rate: IP66
AVIGAIL-DOME (DAY/LWIR)
Automatic Passive Drone Detection Dome System (DAY/LWIR)
Day Sensors: 4K 21 Sensors: FOV 57 deg each
Night Sensors: NA
TILT: Max ±90° Deg; Max. Motor Torque (NM) 35/ 50/ 150
LRF: NA
Power: Regulated 12VDC
IP Rate: IP66
Interface: D38999 Hermetic Stainless Steel, Ethernet / Fiber Optic + Power
Color: Black RAL9005, Anti Salt Powder
Power: 9-36VDC, Mil.STD 1275
IP Rate: IP67, Hermetic, Nitrogen Purged
SA-180 Situational Awareness
Rugged Electro-Optic Panoramic Staring System for Naval and Ground Applications
Day Sensors: 3 Sensors: up to 4K SAPPHIRE Window
Night Sensors: 3 Sensors: 640x512 | 1280x1024 GE Window
PT: NA
LRF: NA
Power: 9-36VDC, Mil.STD 1275
IP Rate: IP67, Hermetic, Nitrogen Purged
Interface: D38999 Hermetic Stainless Steel, Dual Ethernet (ONVIF/RTSP) lines + Power
